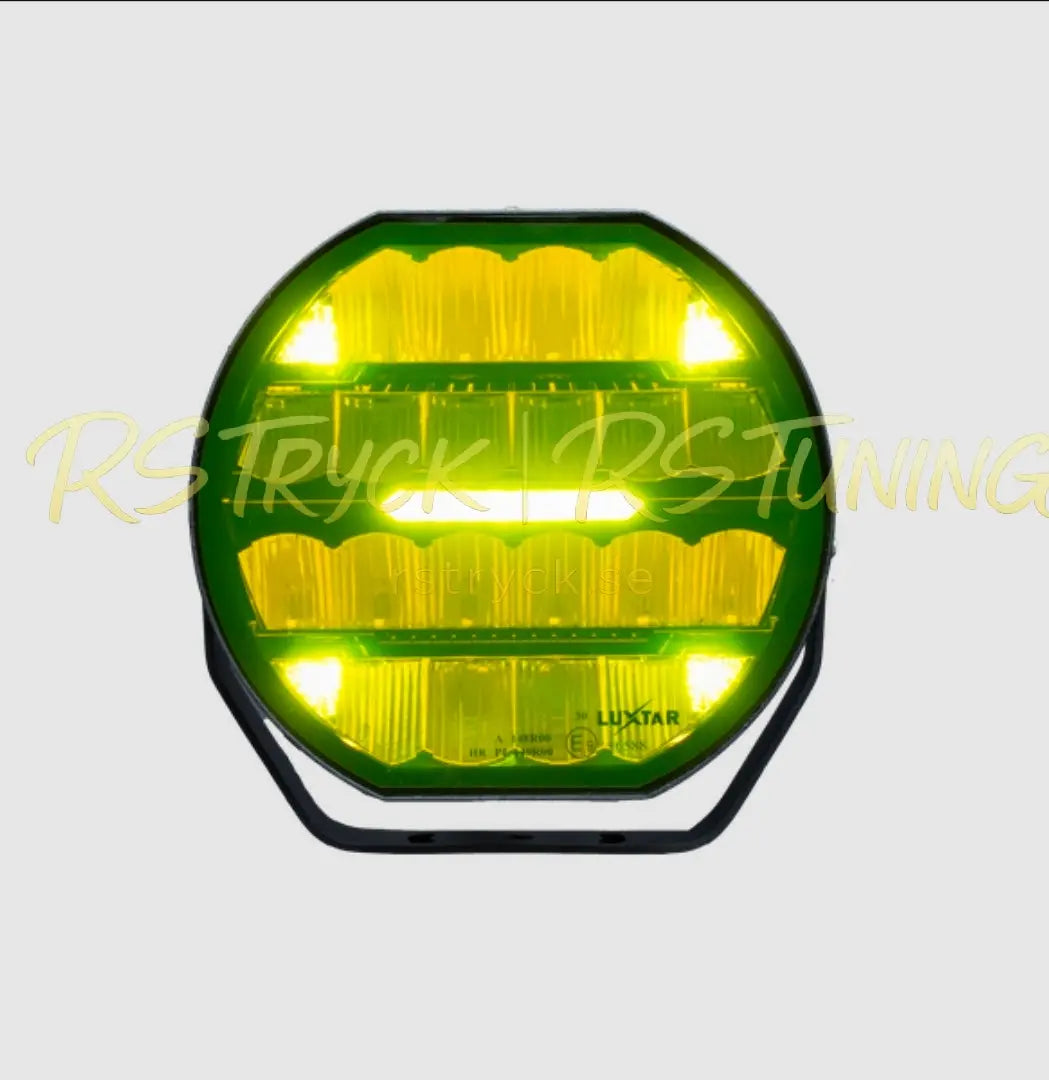

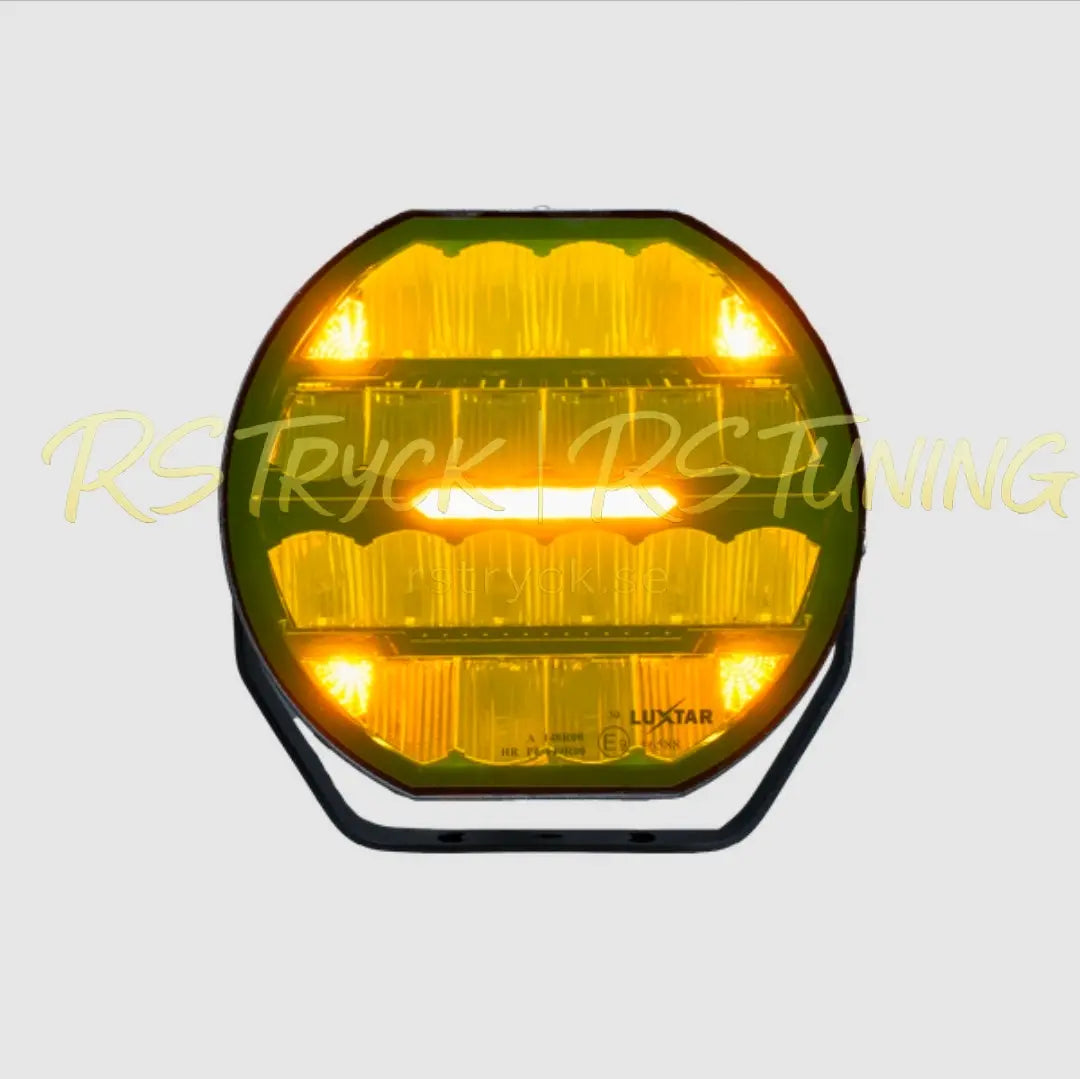

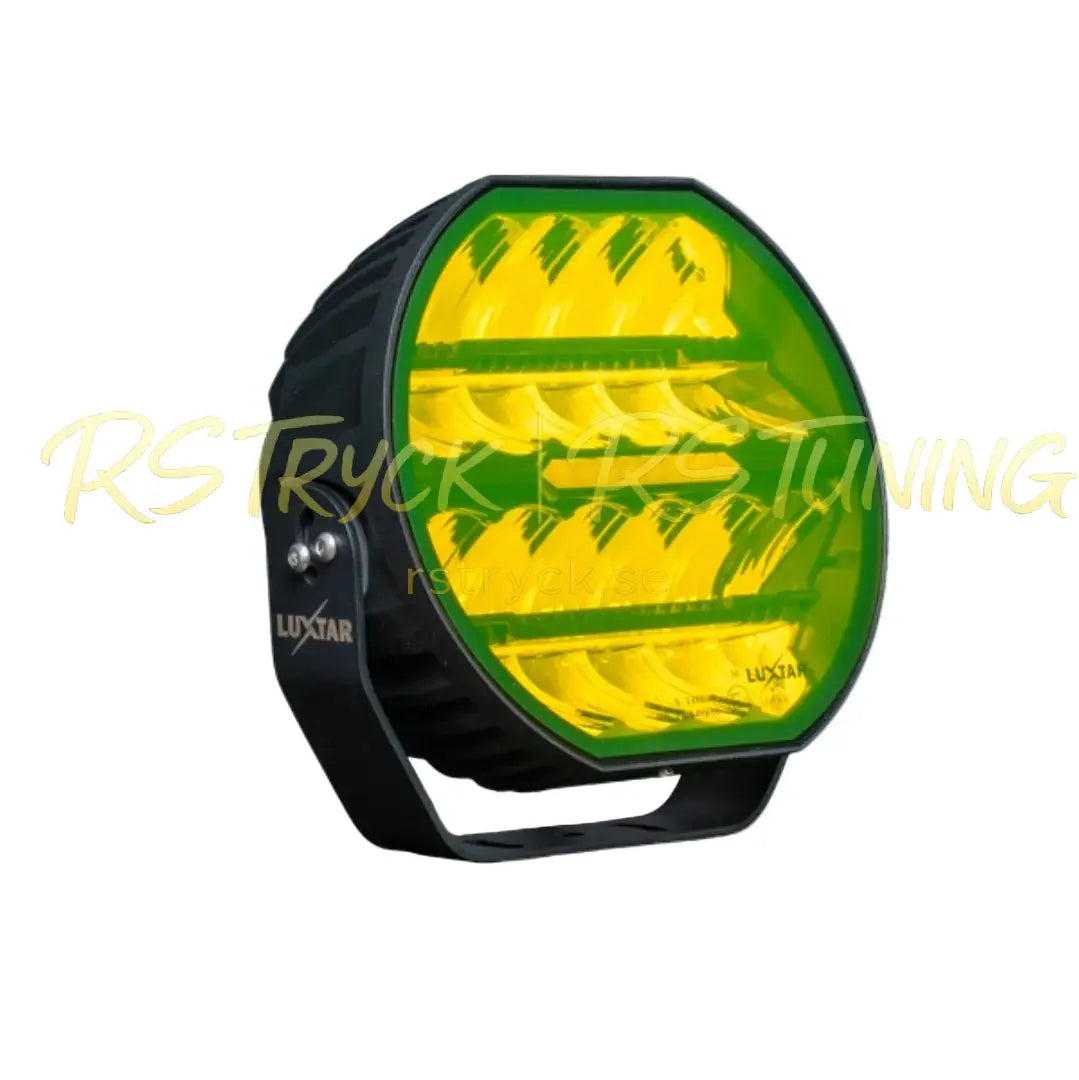

Luxtar Stellar Dynamic 9″ Black | Yellow

New addition to the Luxtar series

The Luxtar Stellar Dynamic is equipped with 20 powerful Osram diodes that provide an impressive light output of 12,200 lumens.

The reflectors create a pleasant Driving Beam light pattern that illuminates the road broadly and also out to the roadside. The range is a full 1 lux at 790 meters. The color temperature of 5500K is carefully balanced

and very comfortable for the eyes, providing sharp and clear illumination. This makes it easier to observe the terrain and detect hazards and obstacles in good time.

Range: 1 lux @ 790 m / R112: 1 lux @ 460 m

Dynamic start-up function for position light in white or orange

12,200 actual lumens

Boost function for extra brightness

With the new Dynamic start-up function for position lights, the lamp provides an impressive start-up pattern that creates an incredible visual effect upon activation.

The innovative backlit reflector, where the position diodes illuminate the sides of the reflector, creates an effective and unique auxiliary light. The parking light function can be adjusted to traditional white or eye-catching orange.

The Stellar Dynamic is equipped with an unbreakable polycarbonate lens, which is completely frameless and has a smooth front that prevents snow and ice from accumulating on the lens, ensuring optimal performance under all conditions.

The auxiliary light is E-approved and equipped with a boost function for extra brightness when needed.

A robust and stable mounting bracket and 4-pin DT connectors are included, and the product comes with a 3-year warranty.

LED: 20 x Osram LED Chip 8 x 10W 12 x 5W

Theoretical Lumens: –

Raw Lumens: 16,480 lm

Actual Lumens: 12,200 lm

Range: 1 lux @ 790 m / R112: 1 lux @ 460 m

Voltage: 9-32V

Power: –

Actual power consumption: 120W

Current consumption: 8.8A @13.7V, 5A @24V

Color temperature: 5500K

Light pattern: Driving

Certificates: E-approved (R112, R10, R148, R149) ref.12.5

Moisture protection: IP68

Connection: 4-pin DT connector on 45cm cable

Dimensions & Weight: Ø 229 x 226 x 90 mm / 2.8 kg

Warranty: 3 years

Actual Power Consumption

120

Color Temperature

5500K

Moisture Protection Value (IPXX)

IP68

Light Pattern

Driving

Voltage (V)

9, 12, 24, 32, multivolt

Current Consumption

5A @24V, 8.8A @13.7V

Lamp Base / Connector

DT-4

Approval

E-approved, R112, R10, R148, R149
